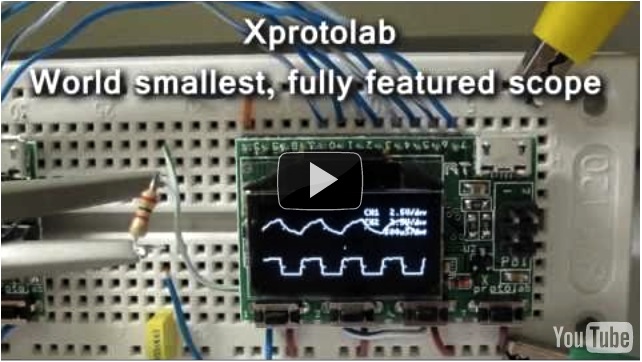

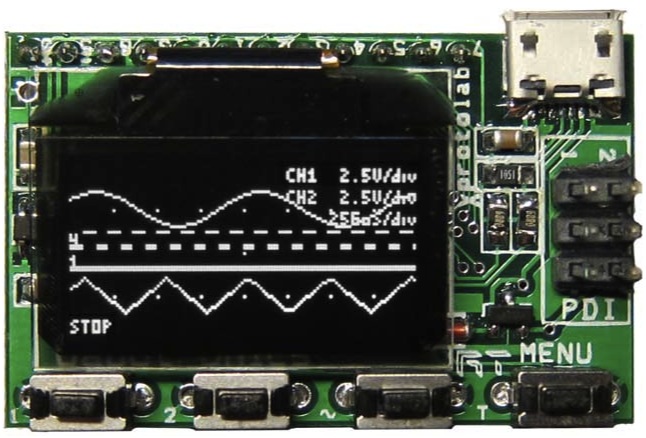

The Xprotolab is the first mixed signal oscilloscope with an arbitrary waveform generator in a DIP module. It measures only 1 x 1.6 inches, and can be mounted directly on a breadboard. The Xprotolab can also be used as a development board for the AVR XMEGA microcontroller. |
Features:
* Mixed Signal Oscilloscope: Simultenaous sampling of analog and digital signals.
* Advanced Trigger: Normal / Single / Auto, with rising or falling edge and adjustable trigger level.
* Meter Mode: DC, Average and Frequency readout.
* XY Mode (Plot Lissajous patterns or see the phase difference between two waveforms).
* Spectrum Analyzer with different windowing options and selectable vertical log.
* Horizontal and Vertical Cursors with automatic waveform measurements.
* Arbitrary Waveform Generator with Frequency Sweep.
* Display options: Persistence, Different grid options, and more.
General Specifications:
* ATXMEGA32A4 32KB Flash, 4KB SRAM, 1KB EEPROM
* Graphic OLED display 0.96", 128x64 pixels
* Module size: 1.615" x 1.01"
* PDI interface.
* 4 tactile switches
* Micro USB connector for power.
Logic Analyzer specifications:
* 8 Digital Inputs
* Maximum sampling rate: 2MSPS
* Protocol Sniffer: UART, I2C, SPI
* Internal pull up or pull down.
* Buffer size: 256
* Voltage level: 3.3V
Oscilloscope specifications:
* 2 Analog Inputs
* Maximum Sampling rate: 2MSPS
* Analog Bandwidth: 200kHz
* Resolution: 8bits
* Input Impedance: 1MΩ
* Buffer size per channel: 256
* Input Voltage Range: +/- 20V
AWG specifications:
* 1 Analog Output
* Maximum conversion rate: 1MSPS
* Analog Bandwidth: 44.1kHz
* Resolution: 8bits
* Output current > +/- 7mA
* Buffer size: 256
* Output Voltage: +/- 2V
